ASUS Xonar U7
Sound card setup page

Return to LP-PAN 2 Installation 1-2-3

This page will outline the installation and setup of the ASUS Xonar U7 USB sound card. The examples are for Windows 7/64b, but should be similar for newer other versions of Windows as well. All active versions of Windows are supported up through 8.1. The U7 does not support XP. Before we get started, here are links to the user manual and drivers, even though these are also supplied with the sound card...


Follow the ASUS manual or quick start guide for proper connections.

Line input from LP-PAN 2 connects to the jack on the front of the card with microphone icon. Headphones / speakers connect to the front panel jack with the headphone icon. USB jack connects to a USB 2.0 port on oyur PC (USB 3,0 probably OK as well). Make sure that the USB switch on the bottom of the U5 is set to "2.0".

Plug the card into your PC with the supplied USB cable.

Don't let Windows  automatically install the card. Insert the supplied CD into the CD drive. Click on the Autorun option or navigate to the Setup.exe file on the CD. Start driver installation. The progress bar may not move for awhile, but it eventuallly will ;-) Once the drivers have finished installing, reboot your computer.

Plug LP-PAN 2 to the sound card input jack using a Y cable and/or adapters. The easiest way to do this is to buy a 1/8" (3.5mm) stereo Y cable with two RCA mono plugs on the other end: White for Left channel (I) and Red for Right channel (Q). Then use a pair of RCA to 1/8" (3.5mm) mono adapters to plug into the back of LP-PAN 2.

Plug a pair of heaphones or a pair of powered speakers into the HP jack if you plan to listen to the NaP3 audio output.

We will use a combination of the ASUS control panel and Windows Mixer to configure the sound card. The input and output jacks to the sound card must be plugged in before Windows Mixer will display the input or output as active and allow adjustments. Even dummy plugs will work, but something must be plugged in.

ASUS Control Panel

Change the settings in the control panel to match the above pictures. You may have to click or right click on the input and output icons on the left to obtain all the correct choices. The important settings are to select the Line In option for input (as opposed to microphone. The output should also be checked. It can be either headphones or speaker. Sample rate and bits should be set to 192000 kHz and 24 bits. Make sure input sliders are set exactly the same for both channels (they normally track together).

If your ASUS control panel does not look like this, use the U5/U7 Sonic Studio setup procedure on this page...

Using Windows Mixer

The mixer panel on the left is accessed by right clicking on the little speaker icon in the toolbar at the bottom of the Windows screen. You will be given several choices after clicking. Choose the one labeled Recording Devices. Scroll up and down until you get to Asus Xonar U7 Line In. Click on the entry and then click on the Properties button to open the Line In Properties window. Click on the Levels tab and use the slider to adjust the audio input level to set the proper ;eve;, approx. 20%. Right clicking on the little speaker icon to the right of the level value will allow you to choose between percentage gain (shown) or dB. Right clicking on the Balance button will allow you to adjust the left and right levels, but normally they will be with 1% of each other and well within the range of the SDR image canceling system.


The advanced tab allows you to set the maximum sample rate for your sound card. It's not required in order to use the Digital Level Meter, but will probably be required to make sure that the mixer works at the full bandwidth of your sound card. Lower left is what it looks like when choosing the setting, and lower right after it has been chosen...


Here are some ballpark Windows Mixer levels that I found experimentally on my system for the indicated sound cards, along with some notes.

Except as noted, NaP3 Gain control is set to 0dB for older versions and -30dB for v2.7. Don't be alarmed by low level settings for some cards. This has nothing to do with dynamic range nor headroom. The reason for the "Percentage / dB" values is that Windows Mixer can be set to display either one. The gain values are derived from the sound card driver, and vary from card to card depending on driver methodology and the overall gain of the card.
Note: When the sound card is adjusted according to this procedure, S9 will appear properly in the S-Meter and panadapter legend of most SDRs. The exception is NaP3 where the legend can be off, depending on sound card. This is because NaP3 does not offer a way to adjust the legend or S-Meter reading independent of the sound card levels. This is done in order to optimize the working range of the WBIR system.

Sound card
 Windows Mixer Level Setting for Optimum Dynamic Range Percentage / dB
Notes / Suggestions
Realtek ALC882 "HD Audio"
60 (+7.6dB)
Use 1/8" (3.5mm) stereo Y adapter and Blue LINE IN jack
E-MU 0202 / 0204 / 0404 USB
3 (-0.4dB)
Front panel pots at 10 o'clock
M-Audio Audiophile 2496
100 (0.0dB)
Set NaP3 Gain to +6
USB SoundBlaster HD (SB1240)
100 (0.0dB)
Set NaP3 Gain to +3, turn on DC Block.
USB SoundBlaster XFi (SB1090)
66 (+8.5dB)
Turn on DC Block for NaP3
Steinberg UR22
100 (0.0dB)
Front panel pots at 9 o'clock, turn on DC Block for NaP3
Syba (VIA) USB SD-AUD20101 0 (0.0dB)
Set Sample Offset to +1, turn on DC Block in NaP3, set CAL to +8.0.
E-MU 1212m PCIe
100 (0.0dB)
PatchMix level set to +7dB. ASIO works a bit better than MME
Infrasonic Quartet
Use ASIO driver and manufacturer's control panel
Asus Xonar U7 USB card
10-20 (-26 to - 20dB)
Set NaP3 Gain to +10.0.
Asus Xonar U5 USB card
0-2 (-16 to -12.5dB)
Set NaP3 Gain to +10.0.
Sewell SoundBox Pro USB
20 (-8dB) Set NaP3 Gain to +10.0. Use Xear Control Panel to set this card up rather than Windows Mixer.
Asus Xonar DSX PCIe
20 (-14.9dB)
Set NaP3 gain to +10. Set this card up in Windows Mixer

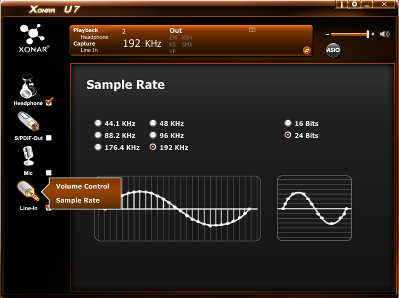

1. Right click on the Line In icon to bring up the Line In options (brown area). Left click on the Volume Control option to choose Volume Control. Set the sliders to between 10% (-20 dB) and 50% (-6.02 dB). Higher values increase sensitivity slightly, but increase the noise floor at the left and right edge, along with adding some spurious spikes. Lower values produce a flat noise floor, but reduce sensitivity by 10 dB or so. The values are the same ones that appear in Windows Mixer, BTW.


2. Right click again on the Line In icon and choose the Sample Rate option.

3. Click on the sample rate options shown above to set the input sample rate to 192 kHz and 24 bits. If you only see options for 44.1 and 48 kHz, either you are plugged into a USB1.1 port on your PC, or the USB slide switch on the bottom of the sound card is in the USB 1 position. Also, the U7 should not be connected to a bus powered hub, but rather directly to the PC.

4. Right click on the headphone icon and choose Headphone Settings. Select the correct gain setting for your headphone output, based on impedance of your headphones. If you are driving a powered speaker, use whichever setting gives a good range of levels.

5. Right click again on the headphone icon and make the same sample rate choices for the headphone output as you did for the Line In.

All of the other settings in the Xonar U7 control panel will stay at their default values.

Setting up NaP3 for use with ASUS Xonar U7 (similar for U5)

Launch NaP3. On the main NaP3 window, select File, then Configure NaP3. The first tab in NaP3 Setup is Input. Enter the settings below as you see them.

Click Calibrate to bring up a Gain window. Set the gain to +10.0 dB. The Configure button can be used to check for balance between channels (the bar should be near the center of the display). Unless you have a bad cable, or set the sound card left and right channels to different levels, this step should not be necessary. Click OK to exit and save the new settings.

At some point you will need to "seed" the WBIR (WideBand Image Rejection) alogorithm to eliminate images. This is best done with a strong carrier somewhere on the screen about a quarter of the way from the left... preferably by itself. A signal generator such as the inexpensive little XG2 from Elecraft makes this a snap.

The function is located on the DSP tab...

My preference is to select Manual mode. This provides at least 60dB image rejection, with no chance of the setting being lost due to poor band conditions, flaky cables or improper powering up sequence of the rig, LP-PAN 2 and the software. Clicking Seed will cause the algorithm to quickly find a solution and minimize the image. You can log the values in case you ever need to enter them manually. They should stay there unless there is a catasptrophe. Click OK to save and exit.

This finishes the basic audio setup of the ASUS and NaP3.

Setting up CW Skimmer for use with ASUS Xonar U5 / U7

If you plan to use CW Skimmer with the Asus, either by itself or simultaneously with NaP3, click on the following link, CW Skimmer Help.
